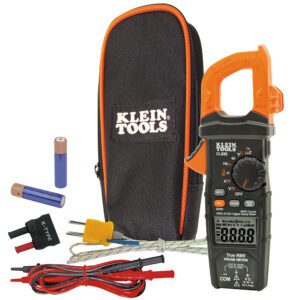

Digital Clamp Meter, AC Auto-Range TRMS, Low Impedance (LoZ), 2000 Amp
$188.99
Description
The CL900 Electrical Tester is an auto-ranging, true root mean square (TRMS) digital clamp meter. It measures AC/DC current via the clamp and measures AC/DC voltage, resistance, continuity, frequency, duty-cycle, capacitance, and tests diodes via test-leads. It features a Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages, and has a dedicated mode for capturing Inrush Current.
Brochure
Instructions
MSDS
Feature
- Digital Clamp Meter measures 2000A AC/DC, 1000V AC/DC, 60 Milliohm
- Rugged Klein TOUGH METER industrial design stands up to jobsite demands; built to withstand a 6.6-Foot (2m) drop
- Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
- CAT IV 600V, CAT III 1000V, Class 2, double insulation safety rating
- Backlit display for clear visibility in environments with low ambient lighting
- Dedicated mode for capturing Inrush Current
- Non-contact voltage tester integrated into the clamp
- Low impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
- Audible continuity, capacitance, diode test, frequency and duty cycle, min/max feature, data hold capability
- Test leads measure AC/DC voltage, resistance, continuity, frequency, duty-cycle, capacitance and diodes
Warning
- Read, understand, and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use
- Before each use, verify meter operation by measuring a known voltage or current
- Never use the meter on a circuit with voltages that exceed the category based rating of this meter
Additional information
| Application | Measures Current to 2000A AC/DC |
|---|---|
| Overall Length | 10.39" (26.4 cm) |
| Functions | Audible Continuity, Capacitance, Diode Test, Frequency & Duty Cycle, Min/Max feature, Data Hold capability, Inrush Current, Low Impedance |
| Voltage | 1000V AC/DC |
| Frequency | 500kHz |
| Special Features | Low Impedance (LoZ) Mode; Dedicated Mode for Capturing Inrush Current; Integrated Non-Contact Voltage Tester |
| Drop Protection | 6.6' (2 m) |
| Included | Carrying Case, Instruction Manual, Straight Input Test Leads, Batteries |
| DC Voltage | 1000 |
| DC Micro-Amp | No |
| Capacitance | 6000µF |
| Jaw Size | 2" (5 cm) |
| Temperature Range | — |
| Ingress Protection | IP40 |
| DC Polarity Indicator | Yes |
| Current | 2000A AC/DC |
| Overall Height | 1.70" (4.3 cm) |
| Auto-Power Off | Yes |
| Weight | 17.6 oz (499 g) |
| Standard | CAT IV 600V, CAT III 1000V |
| AC Voltage | 1000 |
| Type | Clamp Meter |
| Display | 6000 Count LCD |
| Ohms (Resistance) | 60MΩ |
| Material | Plastic/Electronics |
| UPC | 092644692352 |
| UNSPSC | 41113654 |
