Premium All Purpose Quick Release Step Bit Kit, 3 Piece

$104.98

SKU: QRST3PC Categories: , ,

Description

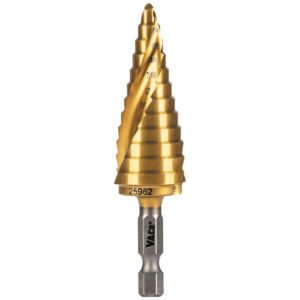

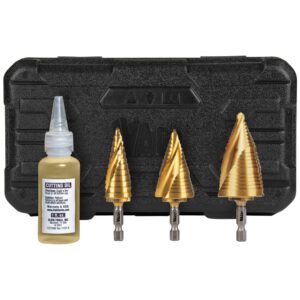

The All Purpose Quick Release Step Bit Set contains three commonly used bits sized 1/2-Inch, 3/4-Inch, and 7/8-Inch plus cutting oil. These Dual Spiral Flutes help pull the step bit through the material for faster cutting. The aluminum titanium coating is 10 times more durable than steamed black oxide for longer bit life. Impact rated, the 1/4-Inch hex shank provides a firm, positive grip and allows quick and convenient usage with an impact driver and a drill. The compact, modular case is designed to nest neatly within MODboxâ„¢ toolboxes and on the MODboxâ„¢ Case Adapter Side Rail Attachment.

Brochure

Brochure 1

MSDS

MSDS 1

YouTube Video

Click Here to Download Video

Feature

  1. Step bits are coated with aluminum titanium nitride and are 10 times more durable than steamed black oxide coating for longer bit life
  2. Impact rated shaft allows for use with impact drivers and standard drills
  3. Double spiral flute removes chips for faster cuts and drilling
  4. Laser markings are easy to read for quick size identification
  5. Fast-starting, non-walking drill tip
  6. Quick-release, 1/4-Inch hex shank provides a firm, positive grip and won’t spin out in the drill
  7. For use on steel (up to 16 gauge), wood, plastic, and aluminum
  8. The compact, modular case comes with cutting oil and is designed to nest neatly within MODboxâ„¢ toolboxes and on the MODboxâ„¢ Case Adapter Side Rail Attachment

Warning

  1. Always ensure that you and persons in the vicinity wear approved eye protection.
  2. Note: Read and follow safety instructions in power tool owner’s manual.

Additional information

Flute Type

Spiral

Quick Reference

#1, #3, #14

Shank Type

1/4" Hex

Special Features

Modular Case, Aluminum Titanium Nitride Coating; Dual Spiral Fluting; Cutting Oil Included

Size

1/8" to 1/2" (3.2 to 12.7 mm); 1/4" to 3/4" (6.4 to 19.1 mm); 3/16" to 7/8" (4.8 mm to 22.2 mm)

Material

High Speed Steel

Number of Holes

13, 9, and 12

Increment

1/32" (0.8 mm); 1/16" (1.6 mm); 1/16" (1.6 mm)

Overall Height

2.8" to 3.4" (7.1 to 8.6 cm)

Weight

1.1 oz (31 g) to 2.24 oz (64 g)

Application

Multi-Material Drilling

Sub Brand

MODboxâ„¢

Overall Length

0.5" to 0.88" (1.3 to 2.2 cm)

Package Quantity

—

Type

Step Drill Bit

Overall Width

0.5" to 0.88" (1.3 to 2.2 cm)

Coating

Aluminum Titanium Nitride (AlTiN)

Size_Name

Small 3-Piece Kit

Style_Name

Quick Release

UPC

7.83423E+11

UNSPSC

20111614
