AC/DC Digital Clamp Meter, Auto-Ranging 400 Amp
$104.97
Description
Klein Tools CL390 is an automatically ranging true root mean squared (TRMS) digital clamp meter. It measures AC/DC current and NCVT via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and diodes via test leads, and temperature via a thermocouple probe. It features a high visibility, reverse contrast LCD display that optimizes view ability both in dark or bright ambient lighting.
Brochure
Instructions
MSDS
Feature
- Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
- Non-contact voltage tester integrated into the clamp jaw
- High-visibility reverse contrast LCD display for improved view ability in all ambient lighting conditions
- Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
- Measures AC/DC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple
- Measures temperature with a K-Type thermocouple probe
- Max/Min, Rel/Zero and Data Hold capability
- Auto-power off after 10 minutes to conserve battery life
- Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries
- Low battery indicator and easily accessible battery compartment
Warning
- Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
- Do not attempt to measure resistance or continuity on live circuits.
- Before each use verify meter operation by measuring a known voltage or current.
- Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
Additional information
| Jaw Size | 1.6" (4.1 cm) |
|---|---|
| DC Polarity Indicator | Yes |
| Display | 4000 Count Reverse Contrast LCD |
| Voltage | 600 V AC/DC |
| Overall Length | 8.45" (21.5 cm) |
| DC Micro-Amp | 200 µA |
| DC Voltage | 600 V |
| Current | 400 A AC/DC |
| Drop Protection | 6.6' (2 m) |
| Capacitance | 4000 µF |
| Batteries | 3 x AAA |
| Application | Measures both AC/DC current and NCVT via the clamp and AC/DC voltage, DC microamp current, resistance, continuity, frequency, duty-cycle, capacitance and tests diodes via the test leads, and temperature with thermocouple |
| Overall Width | 3.5" (8.9 cm) |
| Standard | CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified |
| Functions | TRMS, AC/DC Current, NCVT, AC/DC Voltage, Resistance, DC microamp, Frequency, Capacitance, Continuity, Duty Cycle, Diode Test, and Temperature |
| Material | ABS/Electronics |
| Frequency | 10 Hz to 60 kHz for 8 V to 220 V AC RMS |
| Special Features | Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; AC/DC Current Measurement; High Visibility Reverse Contrast LCD; NCVT |
| Weight | 11 oz (314 g) |
| AC Voltage | 600 V |
| Temperature Range | -40° – 1832°F (-40° – 1000°C) |

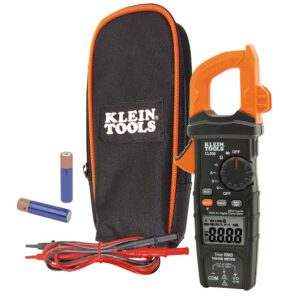

| Included | Clamp Meter; Carrying Case; Instructions; Test Leads; Thermocouple; Batteries |
| Overall Height | 1.5" (3.8 cm) |
| Type | AC/DC Current TRMS Clamp |
| Ingress Protection | — |
| UPC | 092644692871 |
| UNSPSC | 41113654 |
